Before the internet, cell phones, and even radio, the world was connected through a powerful invention known as the telegraph. This early communication tool transformed the way humans shared messages over long distances, paving the way for the modern age of instant connectivity. But how exactly did the telegraph work?
Let’s break it down in a way that makes sense, even if you’ve never touched a wire or studied electrical engineering.
The Telegraph: A Quick History
The telegraph system, as we know it, was popularized in the early 19th century, especially after Samuel Morse and Alfred Vail developed the Morse code system in the 1830s and 1840s. While early forms of visual telegraphs existed (like flag signaling and smoke), Morse’s electric telegraph was the first practical method to send messages over great distances instantly — using electrical pulses and wires.
The Basic Concept Behind the Telegraph
At its core, the telegraph was an incredibly simple device built on a few key principles:
- Electricity flows through a wire when a circuit is closed.
- A magnet can be activated by electricity.
- You can use bursts of electricity (short and long pulses) to represent letters.
That’s it! The magic was in how these pieces were combined.

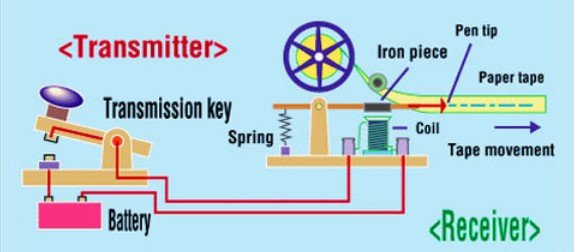

Telegraph System Components
Let’s look at what makes up a traditional telegraph system:
1. Key (Transmitter)
This is a switch that an operator manually presses to send messages. It controls the flow of electricity. Press it down to close the circuit (electricity flows), release to open the circuit (no electricity).
2. Battery
Supplies the electric power needed for transmission. Early telegraphs used simple chemical batteries.
3. Wire (Transmission Line)
A metal wire, often stretching for hundreds or thousands of miles, carries the current from the sender to the receiver.
4. Receiver (Sounder or Register)
This end receives the electrical pulses. When the circuit is closed, the current activates an electromagnet, pulling down a lever to make a click sound. Longer presses make a longer sound.
Enter Morse Code
Morse code was the language of the telegraph. Each letter and number was assigned a unique combination of:
- Dots (short pulses)
- Dashes (long pulses)
For example:
- S =
...(three short pulses) - O =
---(three long pulses) - SOS =
... --- ...
Operators had to listen carefully and decode the rhythm of the clicks to determine the message. Skilled telegraphers could send and receive messages at 20 to 40 words per minute — pretty impressive!
How the Whole Process Worked (Step-by-Step)
Here’s how a full telegraph transmission might go:
- Message is composed in plain language (e.g., “MEET ME AT 5”).
- The operator converts it into Morse code:
-- . . - / -- . / .- - / ..... - The telegraph key is tapped in rhythm — short and long taps for dots and dashes.
- The electrical circuit is closed each time the key is pressed, sending current through the wire.
- On the other end, the receiver clicks — once for each electrical pulse.
- The receiving operator hears the pattern and writes down the corresponding letters.
- Message is delivered to the recipient in regular writing.
Long-Distance Telegraph Lines
Telegraph wires were first laid overland, often following railway tracks. By the mid-1800s, submarine cables allowed communication between continents — most famously the transatlantic cable between North America and Europe in 1866.
To extend range over long distances, relay stations were built. These stations had human operators who would receive the message, then retransmit it to the next station, ensuring signals didn’t weaken over long stretches.
Advancements: From Wires to Wireless
In the late 19th and early 20th centuries, inventors like Guglielmo Marconi took the telegraph wireless using radio waves. This became vital for ships at sea, including the famous use of Morse code in Titanic’s distress signals.
Eventually, the telegraph evolved into the telex, then fax machines, and ultimately into digital communication systems we use today — but the basic principle of encoding, sending, and decoding messages remains.
Why Was the Telegraph So Revolutionary?
- Speed: Messages that once took weeks by horse or ship now took minutes.
- Safety: Emergency messages could be sent quickly (e.g., troop movements, natural disasters).
- Economy: Businesses could get stock updates or send orders across continents.
- News: Reporters used telegraphs to transmit stories worldwide — the first global media.
In short, the telegraph shrunk the world, making global communication possible.
What Happened to the Telegraph?
Though once the backbone of global communication, the telegraph was eventually overtaken by the telephone, radio, and later, the internet. Western Union, a major telegraph company, sent its last telegram in 2006.
Today, Morse code is mostly used by amateur radio enthusiasts, military units, and historians. But its legacy lives on in every email, text, and tweet — all of which owe a debt to this simple electrical wonder.
Final Thoughts
So, how does a telegraph work? At its heart, it’s a device that turns electric pulses into a coded message — a beautiful example of science, simplicity, and ingenuity. With just a battery, some wire, and a good ear, people a world apart could connect in real-time — long before smartphones ever existed.
The next time you send a quick message, remember: it all started with a click and a spark.
